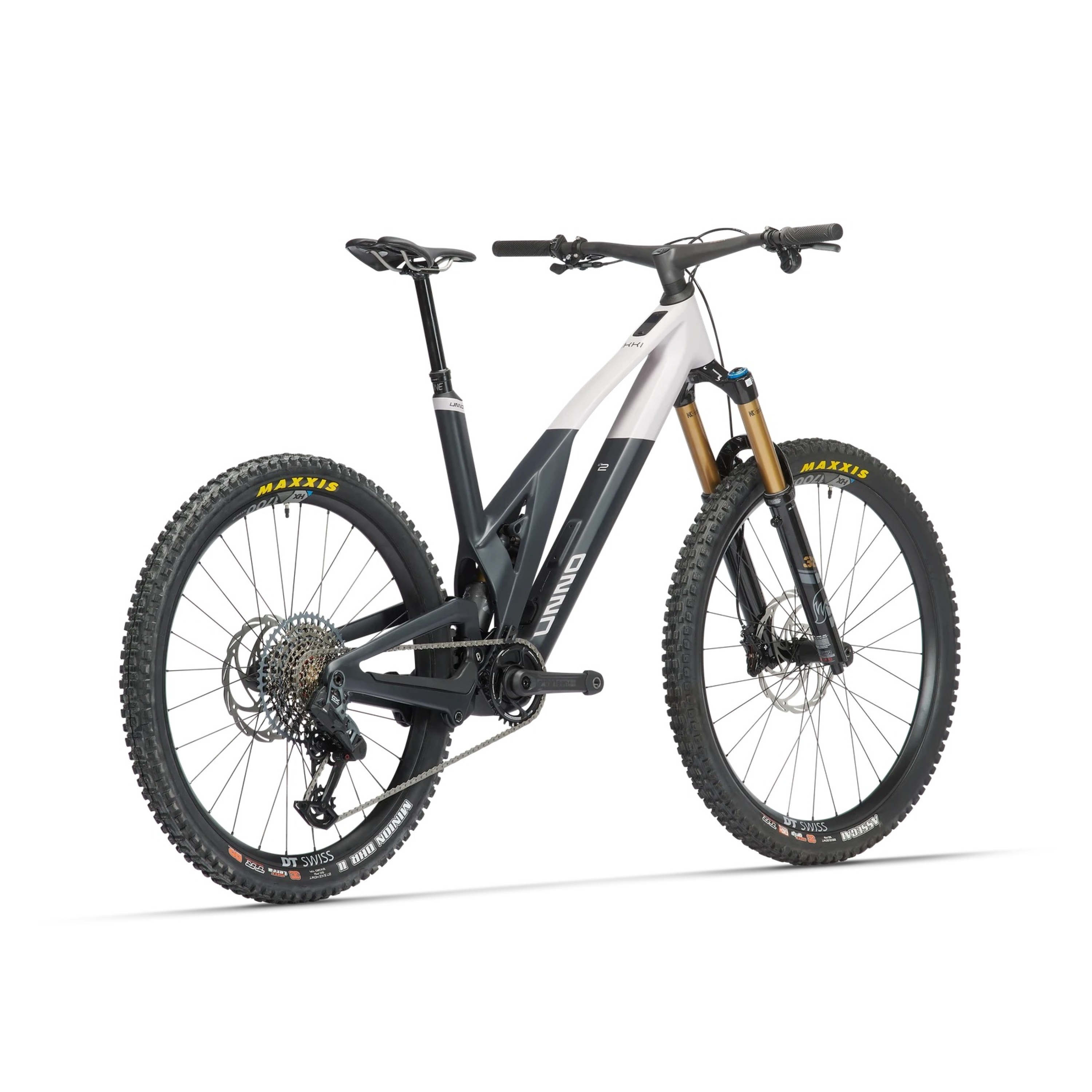

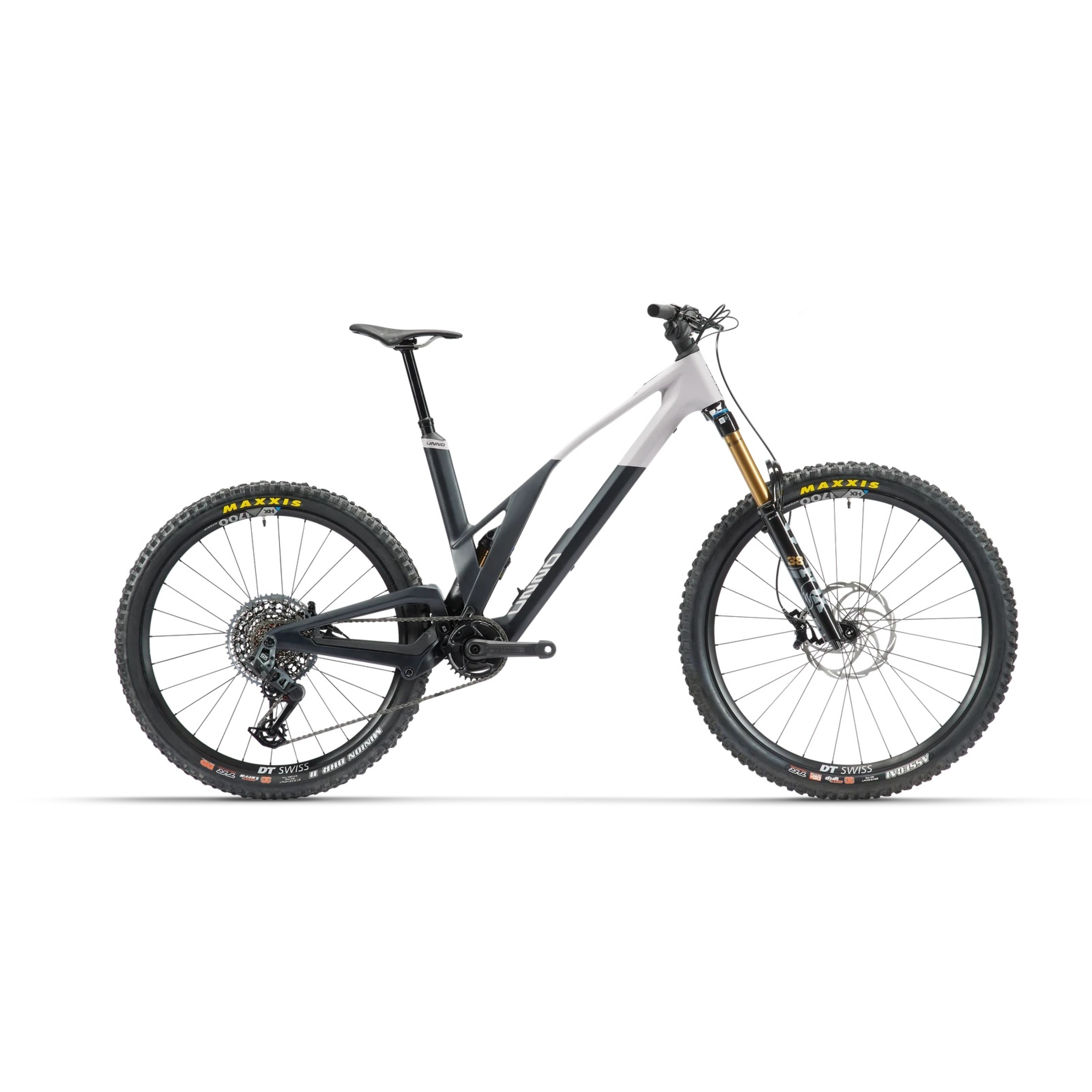

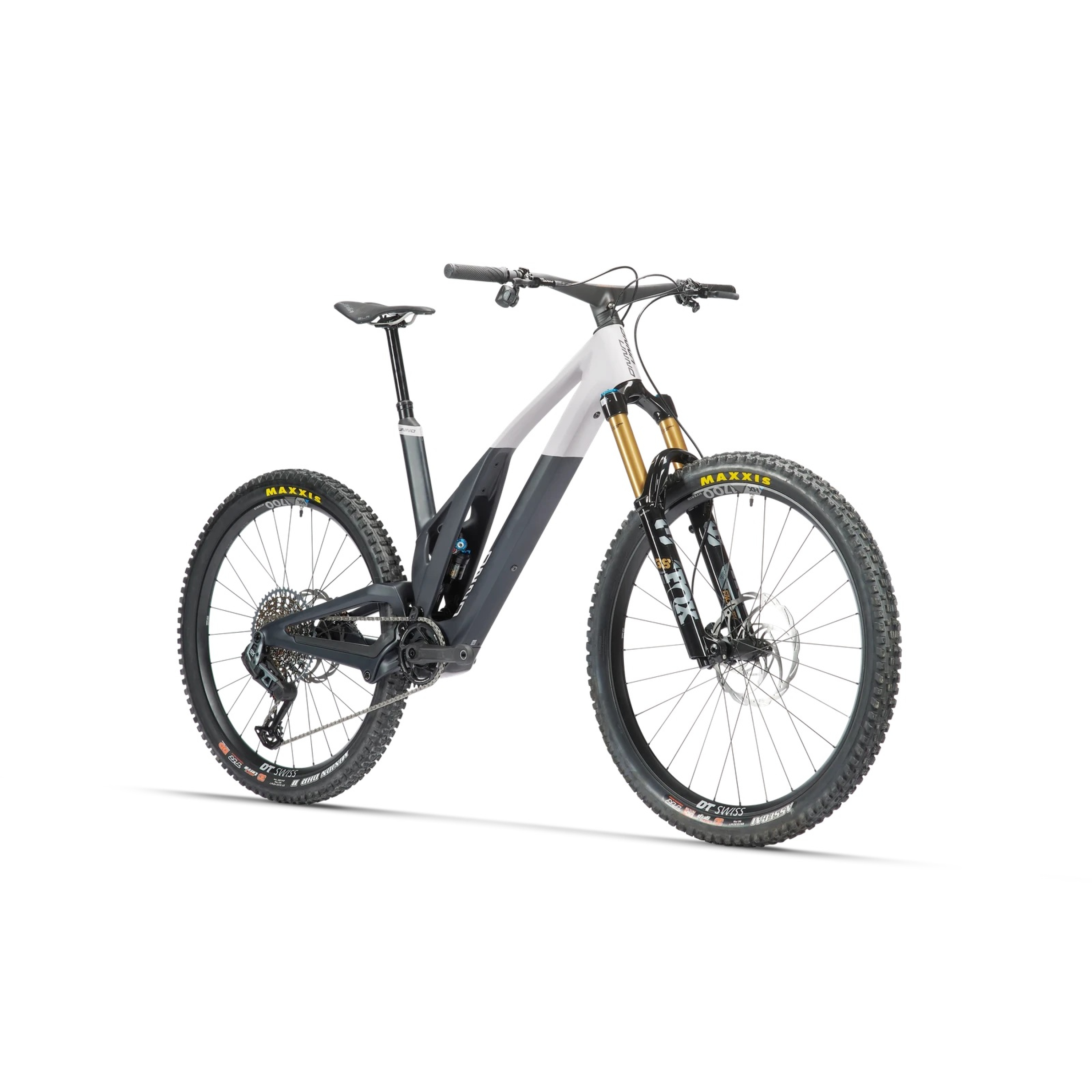

UNNO IKKI RACE TQ

Frame & Motor

Frame

Unno IKKI

Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).

Motor

TQ HPR50

With Harmonic PingRing. 50Nm power. 300W power. Connection ready with ANT+ app.

Battery

TQ 360Wh

Integrated.

Display

TQ HPR50 Display

Integrated in top tube.

Controller

TQ HPR50 Remote

Compact and ergonomic design, accessible from the grip.

Headset

CANE CREEK 40

CANE CREEK 40, No cover, TPR-IS41/28.6/H9 | IS52/40

Suspensions

Fork

Fox 38 Factory

170mm travel. Kashima coating. Grip X2 damper. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.

Shock

Fox Float X2 Factory

230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.

Transmission

Derailleur

SRAM GX AXS T-Type

12 speed. AXS Wireless. T-type.

Controller

SRAM AXS Pod

12 speed. Wireless.

Cassette

SRAM GX T-Type

XS-1275. 12 speed.

Chain

SRAM GX T-Type

12 speed. Flat top.

Chainring

E*Thirteen E*spec

Aluminium, 34T, TQ Direct Mount.

Crankset

SRAM GX T-Type

170mm length. 34t chainring.

Wheelset

Wheels

DT Swiss HX1700 Spline

Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 350 hub. 30mm inner width.

Front Tyre

Continental Kryptotal-F Enduro

29x2.40. Foldable skin SL. Black/Black.

Rear tyre

Continental Kryptotal-R Enduro

27.5x2.40. Foldable skin SL. Black/Black.

Brakeset

Brakes

Formula Cura 4

4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.

Discs

Formula Monolitic

220mm front and 203mm rear rotors. Thickness: 2.35mm. Extreme lateral stiffness, anti-noise and anti-vibrations design.

Cockpit & Seat

Cockpit

DEUX Enduro Integrated

With integrated and hidden wedge. Internal fork tube clamp. 800mm width. 40mm length. 20mm rise.

Dropper

OneUp V3

Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3.

Saddle

Selle Italia

SLR Boost.
